TLE SERIES ECO-PLANETARY

TLE series eco-planetary gearbox, size 60, ratio 7:1, standard backlash, standard backlash. rated/max input speed 3000rpm/6000rpm, rated/max output Torque 19.5/29Nm, keyed shaft. Mounting to suit 60mm frame 400w motor

TLE series eco-planetary gearbox, size 60, ratio 7:1, standard backlash, standard backlash. rated/max input speed 3000rpm/6000rpm, rated/max output Torque 19.5/29Nm, keyed shaft. Mounting to suit 60mm frame 400w motor

Product Code:
TLE060-007-14-50-70-M5-31.5-5

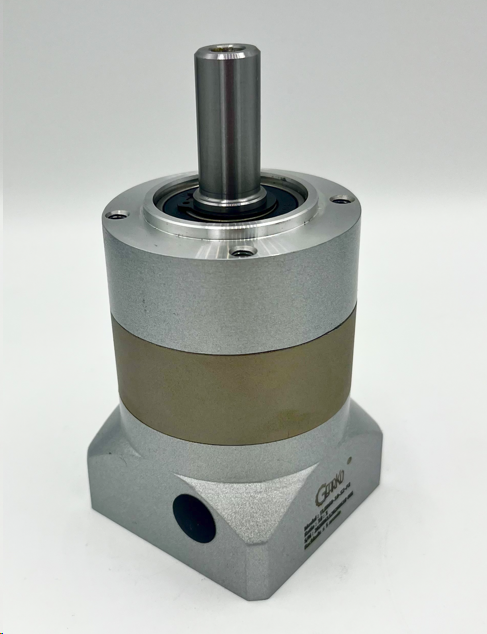

TLE series eco-planetary gearbox,size 60, ratio 3:1, standard backlash. rated/max input speed 3000/6000rpm, rated/max output Torque 30/60Nm, keyed shaft. Mounting to fir 60mm frame 400w motor

TLE series eco-planetary gearbox,size 60, ratio 3:1, standard backlash. rated/max input speed 3000/6000rpm, rated/max output Torque 30/60Nm, keyed shaft. Mounting to fir 60mm frame 400w motor

Product Code:
TLE060-003-14-50-70-M5-31.5-5




TLE series eco-planetary gearbox,size 60, ratio 5:1, standard backlash. rated/max input speed 3000/6000rpm, rated/max output Torque 30/60Nm, keyed shaft. Mounting to fir 60mm frame 400w motor

TLE series eco-planetary gearbox,size 60, ratio 5:1, standard backlash. rated/max input speed 3000/6000rpm, rated/max output Torque 30/60Nm, keyed shaft. Mounting to fir 60mm frame 400w motor

Product Code:
TLE060-005-14-50-70-M5-31.5-5




TLE series eco-planetary gearbox,size 60, ratio 10:1, standard backlash. rated/max input speed 3000/6000rpm, rated/max output Torque 30/60Nm, keyed shaft. Mounting to fir 60mm frame 400w motor

TLE series eco-planetary gearbox,size 60, ratio 10:1, standard backlash. rated/max input speed 3000/6000rpm, rated/max output Torque 30/60Nm, keyed shaft. Mounting to fir 60mm frame 400w motor

Product Code:
TLE060-010-14-50-70-M5-31.5-5




TLE series eco- planetary Gearbox,size 60, ratio 50:1, standard backlash max 15 arc mins. rated/max input speed 3000/6000rpm, rated/max output Torque 49Nm max 1.8x rated, keyed shaft. Mounting to fit 60mm frame 200/400w motor

TLE series eco- planetary Gearbox,size 60, ratio 50:1, standard backlash max 15 arc mins. rated/max input speed 3000/6000rpm, rated/max output Torque 49Nm max 1.8x rated, keyed shaft. Mounting to fit 60mm frame 200/400w motor

Product Code:
TLE060-050-14-50-70-M5-31.5-5
